Neutron Backscatter – How it Works
Neutron backscatter technology is used in oil refining and petrochemical facilities to perform non‑intrusive measurements in situations where conventional instrumentation cannot operate reliably. These systems are typically installed outside process vessels, enabling inspection and monitoring without process interruption or direct contact with hazardous materials.
By exploiting the strong interaction between neutrons and hydrogen‑rich materials, neutron backscatter devices provide real‑time insight into internal process conditions. Variations in neutron scattering behaviour allow operators to detect and monitor the presence and distribution of materials such as hydrocarbons, coke deposits, foams, or liquids inside metal vessels— capabilities that are difficult or impossible to achieve using conventional sensors or x‑ray techniques.
Where neutron glass adds value
Glass is often assumed to be brittle, but in reality it is an exceptionally robust material. When engineered correctly, scintillator glass can withstand extreme temperatures, high shock, vibration, and harsh chemical environments—making it ideally suited to demanding applications such as oil and gas well logging. Unlike gas‑filled detectors, solid‑state neutron glass offers a compact, robust detection medium that supports continuous or periodic monitoring without direct contact with the process.
Neutron backscatter devices for refining
Neutron backscatter devices are particularly valuable in refining and petrochemical applications involving:
- High temperatures, where in‑situ probes and electronics are unsuitable
- High pressures, limiting physical access or penetration
- Fouling, foaming, or coke formation, where internal build‑up obscures conventional measurements
- Limited physical access, including sealed vessels or complex geometries
In these conditions, externally mounted neutron systems provide a robust, low‑maintenance solution for continuous or periodic monitoring without compromising process integrity.
Typical refinery applications
- Detection and monitoring of coke build‑up in reactors and furnaces

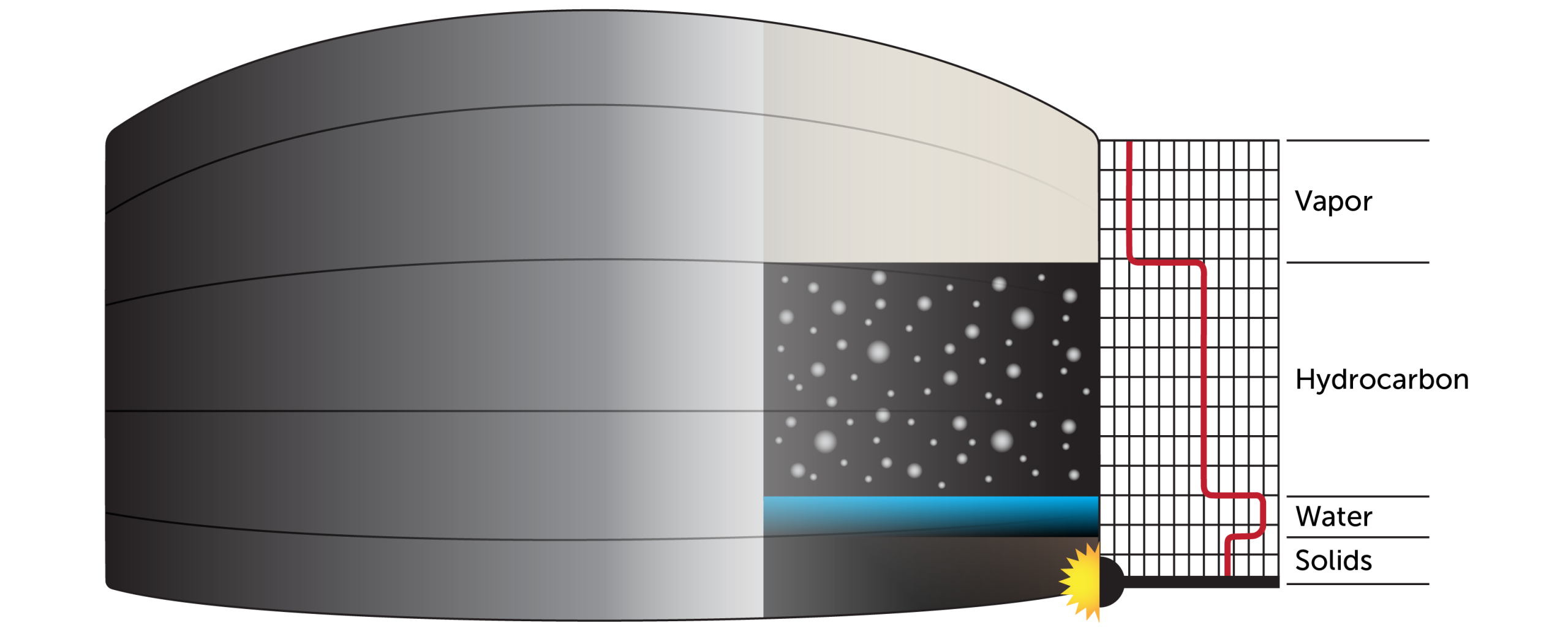

- Identification of liquid levels, foams, or phase boundaries inside vessels
- Process diagnostics in hydrocrackers, reformers, and distillation units
- Support for maintenance planning and operational safety without shutdown
Downloads
Lithium-6 Glass
Why Scintacor?
Scintacor supplies specialist lithium‑6‑based scintillation materials used in neutron detection systems for refining applications.
These materials convert back‑scattered neutrons into visible light, enabling reliable measurement of hydrogen‑rich materials inside process equipment. Designed for industrial environments, Scintacor scintillators support detector performance where long‑term stability, robustness, and measurement confidence are essential.
Contact Us
Frequently asked questions
It is a non-intrusive measurement technique used in refining and petrochemical facilities to “see” through vessel walls. By deploying a system outside the equipment, operators can monitor internal process conditions without direct contact with hazardous materials or interrupting production.
The system exploits the strong interaction between neutrons and hydrogen-rich materials. Fast neutrons are emitted into the vessel; when they collide with hydrogen atoms (found in hydrocarbons, water, or coke), they slow down and “backscatter” toward the detector. Scintacor’s lithium-6 glass scintillators then convert these backscattered neutrons into visible light for real-time analysis.
Traditional sensors often fail in high-temperature, high-pressure, or heavy-fouling environments. Unlike in-situ probes, neutron backscatter systems are solid-state and externally mounted, meaning they don’t clog, corrode, or require vessel modifications to provide reliable data.
These systems are ideal for detecting and monitoring the presence and distribution of:
Hydrocarbons and liquid levels.
Coke deposits and cake build-up in reactors.
Foams and phase boundaries that are otherwise invisible to X-ray or ultrasonic sensors
It is most valuable in critical refinery units where physical access is limited, such as hydrocrackers, reformers, and distillation units. It is also essential for monitoring reactors and furnaces where extreme heat makes conventional electronics unsuitable.
No. One of the primary advantages of using Scintacor-based detection systems is that they are installed outside process vessels. This allows for continuous monitoring and diagnostics without any process interruption or costly downtime.
Scintillation materials are the “eyes” of the detector. Scintacor’s specialized lithium-6 glass converts backscattered neutrons into measurable light pulses. This material is chosen for its robustness, long-term stability, and high sensitivity, ensuring measurement confidence in harsh industrial environments.
By providing real-time insight into internal fouling and build-up, it allows for data-driven maintenance planning rather than “best-guess” scheduling. This prevents emergency shutdowns, reduces the risk of vessel overfill (foam-over), and ensures the facility operates within safe mechanical limits.
